On Site Concrete Batching Plant
Khoom Description
Ntawm qhov chaw Batching cog Kev muag khoom
AGICO ntawm -site pob zeb ua batching cog yog cov khoom tsim ua vaj tse tsim los rau me me rau nruab nrab- qhov loj me thiab kev tsim kho mobile. Nws siv lub modular ua ntej - tsim qauv. Tag nrho cov xaim thiab cov kav dej tau ua tiav ua ntej xa khoom. Cov nroj tsuag los ntawm tus qauv nrog ib lub qhov thaiv insulated thiab ya qhov hnyav. Nws tuaj yeem ua haujlwm ruaj khov hauv lub caij ntuj no lossis ib puag ncig hnyav.
Cov cuab yeej ua tau raws li ISO thiab cov qauv tsim khoom thoob ntiaj teb. Nws tau raug xa tawm mus rau ntau lub khw xws li thiab dav siv hauv kev nrawm nrawm- taug qab kev tsim kho, precast ntau lawm, thiab tej thaj chaw deb thaj chaw.
cov tswv cuab nquag
xyoo kev
xwm txheej & kev sib tw
Export Lub Tebchaws
Khoom Specification
Cov qauv thiab cov qauv tsim
AGICO ntawm-site pob zeb ua batching cog siv cov qauv steel ncej chassis. Cov khoom sib tov, qhov hnyav, chav tswj, thiab cov ntsia hlau conveyor yog txhua yam sib xyaw ua ke ntawm tib lub qauv. Tag nrho cov kab hluav taws xob, cov kav dej cua, thiab kev rwb thaiv tsev yog ua ntej - ntsia ntawm lub Hoobkas. Nyob rau ntawm qhov chaw, tsuas yog dej thiab hluav taws xob sib txuas yog xav tau los pib ua haujlwm. Cov nroj tsuag muaj qhov tsawg profile, uas ua rau nws yooj yim rau kev thauj mus los ntawm txoj kev thiab kev lis kev cai meej.
Qhov System Cheebtsam
Batching System
PLD series batching tshuab nrog 2-4 aggregate bins. Cov kev xaiv muaj rau nyias qhov hnyav lossis hnyav hnyav.
Mixing System
JS series ntxaib -shaft yuam mixer. Tawm ntim ntau ntawm 500L txog 4000L.
Ntsuas Qhov System
Flying hnyav system rau aggregates nrog ± 2% raug. Cement, dej, thiab additives txhua tus muaj ± 1% raug.
Pneumatic System
W / V series cua compressor nrog kev khiav hauj lwm siab ntawm 0.6-0.8 MPa.

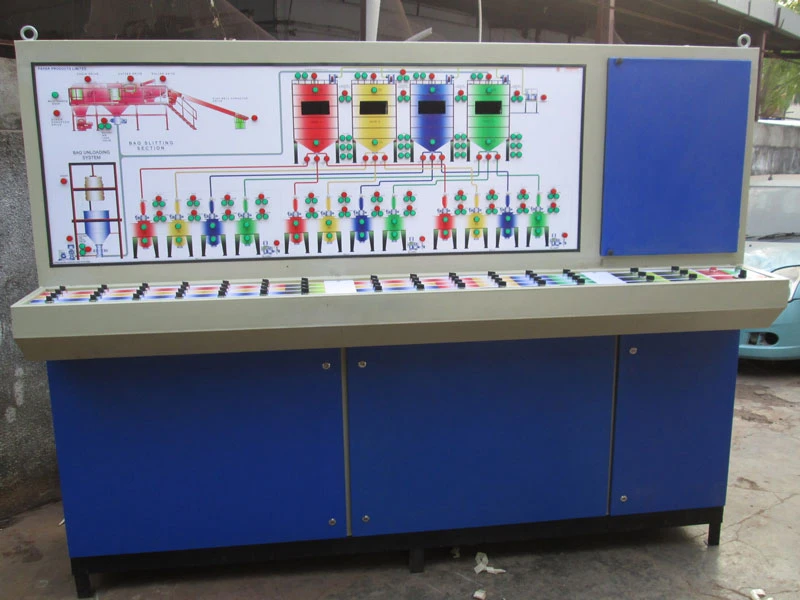

Tswj System
Tsis siv neeg puv nrog phau ntawv hla dhau. suav nrog -sijhawm daim ntawv qhia kev khaws cia thiab kev tshaj tawm ntau lawm.
Powder Conveying thiab Cia
φ219-φ325 ntsia hlau conveyor. Welded cement silo nrog plua plav collector, muaj peev xwm ntawm 100t txog 200t.
Peb Hom AGICO Concrete Batching Cog
Hla Hoist Series Qhob Batching Cog
Qhov no series siv lub hla hoist rau aggregate noj. Nws muaj cov hneev taw me me, ua rau nws haum rau qhov chaw - txwv lossis qis - cov phiaj xwm nyiaj txiag. Tawm qhov siab yog kho tau los ntawm 1500mm txog 3800mm. Theoretical ntau lawm muaj peev xwm ntawm 25 m³ / h txog 75 m³ / h.
Siv Conveyor Series Concrete Batching Cog
Cov koob no muaj kev ua haujlwm ruaj khov thiab cov zis siab. Nws yog txawm peem rau nrog 4 ywj siab aggregate bins. Nws yog haum rau nruab nrab mus rau loj tej yaam num thiab precast tivthaiv factories. Ntau lawm muaj peev xwm ntawm 60 m³ / h txog 240 m³ / h.
Txawb Trailer Series Qhob Batching Cog
Qhov no series los nrog axles thiab log tsheb. Tsis xav tau lub hauv paus. Tag nrho cov nroj tsuag tuaj yeem hloov mus rau hauv tsuas yog 1-2 teev. Nws yog qhov zoo tagnrho rau cov neeg cog lus uas ua haujlwm ntawm ntau qhov chaw ua haujlwm hauv kev sib hloov.
Vim li cas thiaj xaiv AGICO
Lub AGICO ntawm -site pob zeb ua batching cog siv lub trailer-mounted chassis thiab folding qauv. Nws yuav tsum tsis muaj pob zeb hauv paus lossis crane. Kev teeb tsa thiab kev ua haujlwm tuaj yeem ua tiav hauv 1 teev, uas txo qis lub sijhawm npaj tsim kho.
Lub AGICO tshwj xeeb ya aggregate hnyav qhov system tshem tawm qhov xav tau ntxiv cov cement ntxiv los them rau qhov hnyav qhov yuam kev. Nws txuag tau 30 kg ntawm cement ib cubic meter ntawm pob zeb, txo CO₂ emissions, thiab xyuas kom meej slump.
AGICO cog yog nruab nrog dual -computer synchronized tswj system. Cement, dej, thiab additives yog hnyav ntawm nws tus kheej nrog ± 1% raug. Batch sib xws muaj zog, thiab tib neeg kev ua haujlwm yuam kev raug tshem tawm.
AGICO cog los nrog lub Hoobkas - preinstalled rwb thaiv tsev enclosure thiab aggregate cua sov system. Tsis tas yuav rhuav tshem lawv thaum tshem cov nroj tsuag. Nws tuaj yeem txuas ntxiv ntau lawm hauv sub-zero ib puag ncig, tso cai rau xyoo tiag- hloov chaw mus rau txhua qhov chaw ua haujlwm.
Cov nroj tsuag AGICO siv lub ntxaib -shaft quab yuam sib tov. Lub voj voog sib xyaw tsuas yog 72 vib nas this. Qhov siab tshaj plaws sib sau ua ke yog 80mm. Cov hnav-cov ntaub ntawv tiv taus thiab cov hniav yog qhov yooj yim los hloov, ua rau nws tsim nyog rau kev tsim cov khoom ua haujlwm siab - lub zog ua vaj tse.
AGICO Professional Team muab kev txhawb nqa tag nrho
Los ntawm kev tsim qauv tsim thiab kev txheeb xyuas nyiaj txiag rau kev teeb tsa txawv teb chaws, kev ua haujlwm, thiab kev cob qhia tus neeg ua haujlwm, AGICO muab 12-hli warranty thiab cov khoom siv mus sij hawm ntev, pab cov neeg siv khoom txo cov kev pheej hmoo ua haujlwm.
ib - nres kev daws teeb meem
pab neeg tshaj lij
tus qauv siab
FAQ
Q: Puas yog AGICO ntawm -site batching cog tsim nyog rau kev tsim kho lub caij ntuj no hauv thaj chaw txias?
A: Yog. AGICO rwb thaiv tsev enclosure thiab aggregate cua sov system yog ob qho tib si ua ntej - ntsia ntawm lub Hoobkas. Thaum lub sijhawm ua haujlwm, qhov ntsuas kub sab hauv tuaj yeem khaws cia siab dua 5 degree. Cov txheej txheem rwb thaiv tsev tsis tas yuav raug tshem tawm thaum hloov cov nroj tsuag. Qhov no ua rau nws tsim nyog rau kev tsim kho lub caij ntuj no txuas ntxiv hauv siab - thaj chaw txias xws li Russia thiab Canada.
Q: Yuav ua li cas ya qhov hnyav ntawm qhov ntawm -site batching cog txuag cement?
A: Ib txwm siv lub tshuab hnyav feem ntau xav tau ntxiv cov cement ntxiv kom ntseeg tau tias muaj zog ntawm cov pob zeb vim kev poob lag luam thiab hysteresis yuam kev. AGICO ya hnyav hnyav ua tiav qhov siab - ntsuas qhov tseeb thaum lub sijhawm thauj khoom, nrog qhov yuam kev tswj tsis pub dhau ± 2%. Qhov no tsis txhob ntxiv cov cement ntxiv, txuag 30 kg ntawm cement ib lub cubic meter, thiab txo cov pa roj carbon emissions tib lub sijhawm.
Q: Nws yuav siv sij hawm ntev npaum li cas los hloov cov nroj tsuag AGICO? Puas yog cov kws tshaj lij kws tshaj lij xav tau?
A: Tom qab ua tiav kev tsim khoom ntawm ib qhov chaw ua haujlwm, AGICO mobile cog tuaj yeem muab ntim, ntim, thiab thauj mus rau lub tsheb thauj khoom hauv 4 mus rau 6 teev. Reinstallation ntawm qhov chaw tshiab yuav siv sijhawm li 1 txog 2 teev xwb. AGICO muab cov lus piav qhia ua haujlwm thiab cov lus qhia chaw taws teeb. Cov neeg ua haujlwm tsis tu ncua los ntawm cov neeg siv khoom tuaj yeem ua tiav qhov kev hloov chaw.
Q: AGICO ua li cas kom paub tseeb tom qab- kev muag khoom rau cov haujlwm thoob ntiaj teb?
A: AGICO muab 12- lub hlis lav rau txhua qhov khoom siv thiab tau tsim cov chaw muag khoom txawv teb chaws (piv txwv li, hauv Philippines, Nigeria, thiab Chile). AGICO tseem txhawb nqa cov chaw taws teeb tswj, kev cob qhia video, thiab kev xa khoom ntawm tus kws tshaj lij los xyuas kom meej tias cov nroj tsuag tuaj yeem ua haujlwm ib txwm nyob hauv txhua lub tebchaws.
Cim npe nrov: ntawm qhov chaw pob zeb batching cog, Tuam Tshoj ntawm qhov chaw pob zeb batching cog manufacturers, hoobkas
Qauv Parameter
Parameter ntawm Hla Hoist Series Batching Cog
Qauv | Theoretical Peev Xwm (m³ / h) | Mixer Qauv | Tshem tawm Volume (L) | Mixing Cycle (s) | Max. Tag Nrho Qhov Loj (mm) |
|---|---|---|---|---|---|
AG-HZS25 | 25 | JS500 | 500 | 72 | 80/60 |
AG-HZS35 | 35 | JS 750 | 750 | 72 | 80/60 |
AG-HZS50 | 50 | JS 1000 | 1000 | 72 | 80/60 |
AG-HZS75 | 75 | JS1500 Nws | 1500 | 72 | 80/60 |
Parameter ntawm Siv Conveyor Series Batching Cog
Qauv | Theoretical Peev Xwm (m³ / h) | Mixer Qauv | Aggregate Bin Volume (m³ × 4) | Cement Scale Accuracy | Dej ntsuas qhov tseeb | Tag nrho lub zog (kW) |
|---|---|---|---|---|---|---|
AG-HZS60 | 60 | JS 1000 | 7×4 | ±1% | ±1% | ~80 |
AG-HZS90 | 90 | JS1500 Nws | 15×4 | ±1% | ±1% | ~120 |
AG-HZS120 | 120 | JS 2000 | 15×4 | ±1% | ±1% | ~160 |
AG-HZS180 | 180 | JS3000 | 20×4 | ±1% | ±1% | ~220 |
AG-HZS240 | 240 | JS4000 | 20×4 | ±1% | ±1% | ~280 |
