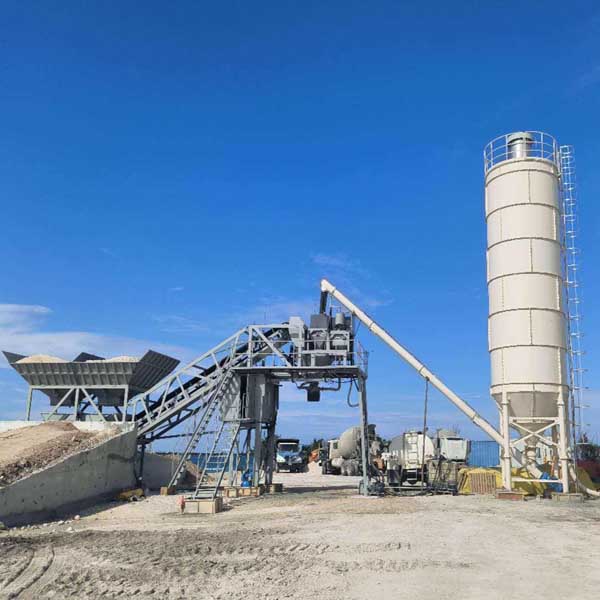

Qhuav Mix Concrete Batching Cog
Khoom Description
Qhuav mix qhob batching cog, tseem hu ua transit mix cog, yog ib hom kev tsim cov khoom ua vaj tse uas ua haujlwm yam tsis muaj lub hauv paus tov. Nws nta cov khoom qhuav batching, nrog dej ntxiv thiab sib tov ua tiav hauv lub tsheb thauj mus los sib tov thaum lub sijhawm thauj mus los.
Cov nroj tsuag no muaj qhov zoo ntawm kev nqis peev qis qis, kev saib xyuas tsis zoo, thiab kev thauj mus los ntev - nyob deb, ua rau nws tshwj xeeb tshaj yog rau cov chaw nyob deb nroog thiab ceev ceev -khiav kev tsim kho
kev ua haujlwm siab
kev nqis peev tsawg
kev saib xyuas qis
siab profitability
Khoom Specification
Cov txheej txheem ua haujlwm ntawm AGICO Dry Mix Concrete Cog
Lub hauv paus ntsiab lus ntawm kev ua haujlwm ntawm cov pob zeb qhuav qhuav yog raws li hauv qab no: Cov khoom hnyav qhuav qhuav xws li cov cement, xuab zeb, thiab pob zeb tau thauj mus rau hauv cov pob zeb sib xyaw tsheb thauj khoom. Thaum lub sij hawm kev thauj mus los, dej yog ntxiv thiab cov ntaub ntawv sib xyaw. Thaum mus txog ntawm qhov chaw tsim kho, cov pob zeb sib xyaw yog unloaded.
Batching & Weighing
Xuab zeb thiab aggregates tau txiav txim siab los ntawm cov khoom sib sau ua ke thiab tshuab batching. Cov cement, ya tshauv, thiab lwm yam khoom siv hmoov yog xa los ntawm cov cement silo mus rau qhov hnyav ntawm cov ntsia hlau conveyor.
Qhuav Khoom Loading
Tag nrho cov ntaub ntawv qhuav raug tso tawm mus rau hauv lub nruas sib xyaw ntawm lub pob zeb sib tov tsheb hauv qhov kev txiav txim siab ua ntej tswj hwm los ntawm batching cog kev tswj qhov system.
Ntawm -Kev sib xyaw ua ke
Lub tsheb sib tov tig nws lub nruas ntawm qhov ceev ntawm 70-100 revolutions ib feeb thaum thauj. Dej thiab kua admixtures yog ntxiv thaum lub sij hawm thauj khoom lossis hauv kev thauj mus los. Thaum lub sijhawm lub tsheb thauj khoom tuaj txog ntawm qhov chaw ua haujlwm, cov pob zeb ua tiav tag nrho thiab npaj rau kev siv tam sim ntawd.
| Parameter | HZS 25 | HZS35 | HZS 50 | HZS 60 | HZS 75 | HZS 90 | HZS 120 | HZS 180 | HZS 240 | HZS 300 |
|---|---|---|---|---|---|---|---|---|---|---|
| Theoretical productivity (m³ / h) | 25 | 35 | 50 | 60 | 75 | 90 | 120 | 180 | 240 | 300 |
| Theoretical productivity (yd³ / h) | 33 | 46 | 65 | 78 | 98 | 118 | 157 | 235 | 314 | 392 |
| Standard tawm qhov siab (m) | 2.7–3.8 | 3.8 | 2.7–3.8 | 3.8 | 3.8 | 4.0 | 4.0 | 4.0 | 4.2 | 4.2 |
| Tag nrho lub zog (kW) | 50.25 | 75 | 105 | 120 | 145 | 210 | 260 | 330 | 370 | 400+ |
| Mixer qauv | JS500 | JS 750 | JS 1000 | JS 1000 | JS 1500 | JS 1500 | JS 2000 | JS3000 | JS4000 | JS5000 |
| Batching tshuab qauv | PEB 800 | PEB 1200 | PEB 1600 | PEB 1600 | PEB 2400 | PEB 2400 | PEB 3200 | PEB 4800 | Hauv av hopper | Hauv av hopper |
| Siv dav (mm) | 500 | 600 | 600 | 800 | 800 | 800 | 1000 | 1000 | 1200 | 1200 |
| Siv conveyor zog (kW) | 2.2 | 7.5 | 7.5 | 7.5 | 7.5 | 11 | 15 | 15 | 22 | 22 |
| Tswj qhov system | PLC + lub computer pib tswj | PLC + dual lub computer redundancy | ||||||||
| Plua plav sau | Pulse dav hlau hnab lim | Multi-theem mem tes system | ||||||||
Kev vam meej Case
AGICO yog ib lub tuam txhab ua cov cement ntau lawm thiab cov khoom tsim cov khoom siv cement, peb kuj muab tag nrho cov pob zeb ua vaj tse. peb muaj ntau tshaj 20 xyoo ntawm kev lag luam kev lag luam thiab ua tiav ntau txhiab tus neeg mob.
| Parameter | Me me Scale Plant (HZS25–50) | Medium Scale Plant (HZS60–120) | Loj Loj (HZS180-300) |
|---|---|---|---|
| Nruas muaj peev xwm (m³) | 6–8 | 8–12 | 12–16 |
| Kev sib xyaw ceev thaum caij tsheb npav (r / min) | 70–100 | 70–100 | 70–100 |
| Txoj kev ntxiv dej | Thaum lub sijhawm thauj khoom lossis kev thauj mus los | ||
| Txoj kev tso tawm | Screw auger yuam tawm | ||
| Tsav hom | PTO lub zog tag nrho (lub zog coj-tawm) | ||
Khoom kos duab
cov khoom zoo
Kev nqis peev tsawg
Tsis muaj lub hauv paus sib tov yuav tsum tau, txo cov peev txheej pib los ntawm 30-40%.
Flexible Capacity
Muaj peev xwm ntau lawm los ntawm 25 mus rau 300 m³ / h, nrog rau kev kho kom haum raws li qhov project tshwj xeeb.
Ntev -Ntaus Transpor
Cov ntaub ntawv qhuav tuaj yeem ua haujlwm tau ntev li 2-4 teev yam tsis tau teeb tsa, ua kom muaj kev ncua deb.
Kev tu yooj yim
Tsis muaj cov hniav sib xyaw lossis cov ntaub qhwv los hloov, thiab tsis tas yuav tsum muaj kev tu txhua hnub ntawm cov khoom sib tov.
FAQ
Q: Lub tuam txhab zoo li cas yog AGICO?
A: AGICO yog cov khoom lag luam ua lag luam nyob hauv Suav teb, nrog ntau tshaj 20 xyoo ntawm kev paub hauv cov khoom siv cement thiab pob zeb tsim, tsim khoom, thiab EPC project xa. Peb tshwj xeeb hauv kev muab cov khoom siv tau zoo, txhim khu kev qha, thiab tus kws kho tsheb- ua kom qhuav sib xyaw ua ke cog kev daws teeb meem. Los ntawm ib tus kheej cov cuab yeej siv los ua kom tiav cov txheej txheem cog qoob loo, AGICO tau dhau los ua tus khub ntseeg siab rau cov neeg siv khoom thoob ntiaj teb ua tsaug rau nws cov kev txawj ntse sib sib zog nqus thiab ntau txhais tes- ntawm kev paub.
Q: Puas yog cov cuab yeej tsim khoom ntawm AGICO qhuav mix nroj tsuag txhim khu kev qha thiab muaj ntawv pov thawj?
A: Yog. Lub tshuab tsim khoom ntawm AGICO qhuav mix qhob batching cov nroj tsuag tau dhau los ntawm thoob ntiaj teb cov qauv ntawv pov thawj, thiab cov khoom tseem ceeb xws li lub cev hnyav, kev tswj xyuas, thiab cov plua plav sau tag nrho ua raws li kev lag luam zoo specifications. Peb cov cuab yeej ua kom ruaj khov ua haujlwm tau zoo thiab qhov tseeb batching raug, nrog rau qhov hnyav hnyav ntawm ± 2% thiab cement, dej, thiab ntxiv qhov hnyav ntawm ± 1%. Tsis tas li ntawd, PLC -raws li kev tswj hwm tsis siv neeg ua haujlwm tau lees paub kev ntseeg tau thiab kev taug qab ntawm cov txheej txheem tsim khoom, ua rau AGICO qhuav mix nroj tsuag muaj kev ntseeg siab rau kev tsim kho niaj hnub.
